IT1 400DP
Configuration: Rotary Press
Finished product: Sandals and Galoshes
Material: Thermoplastics PVC TR TPU

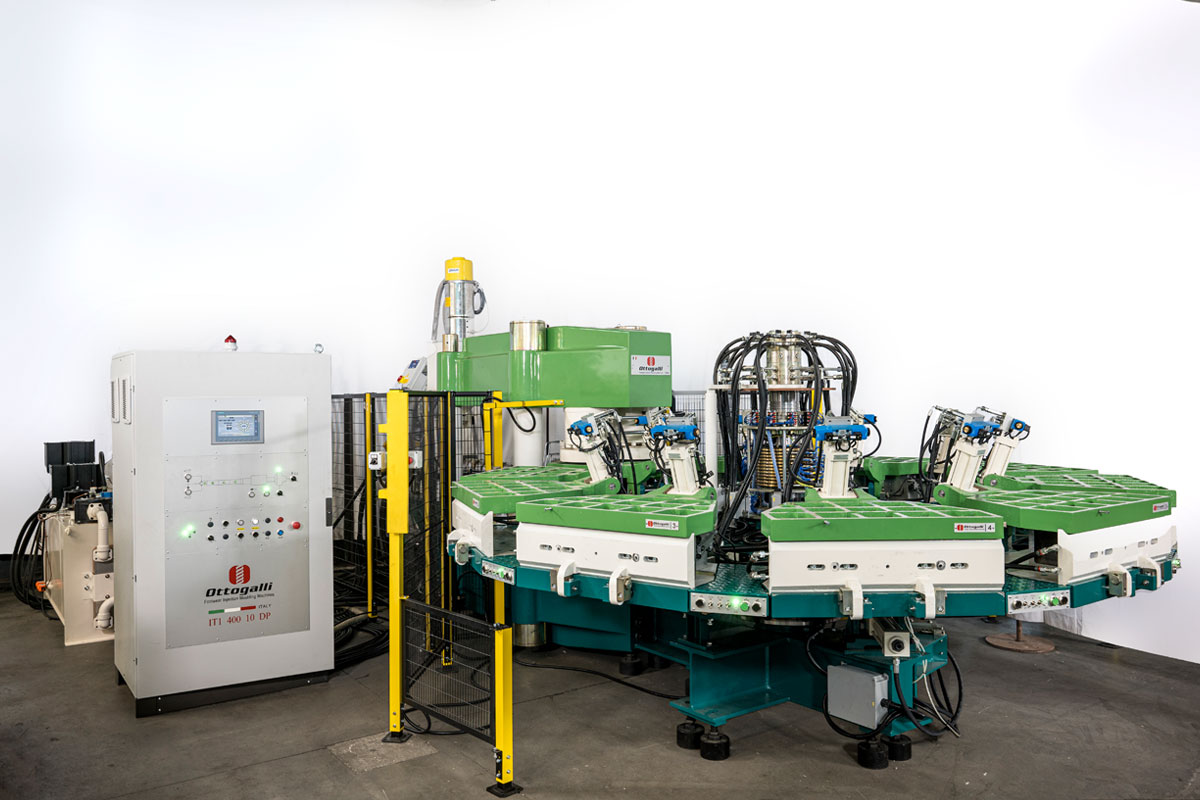

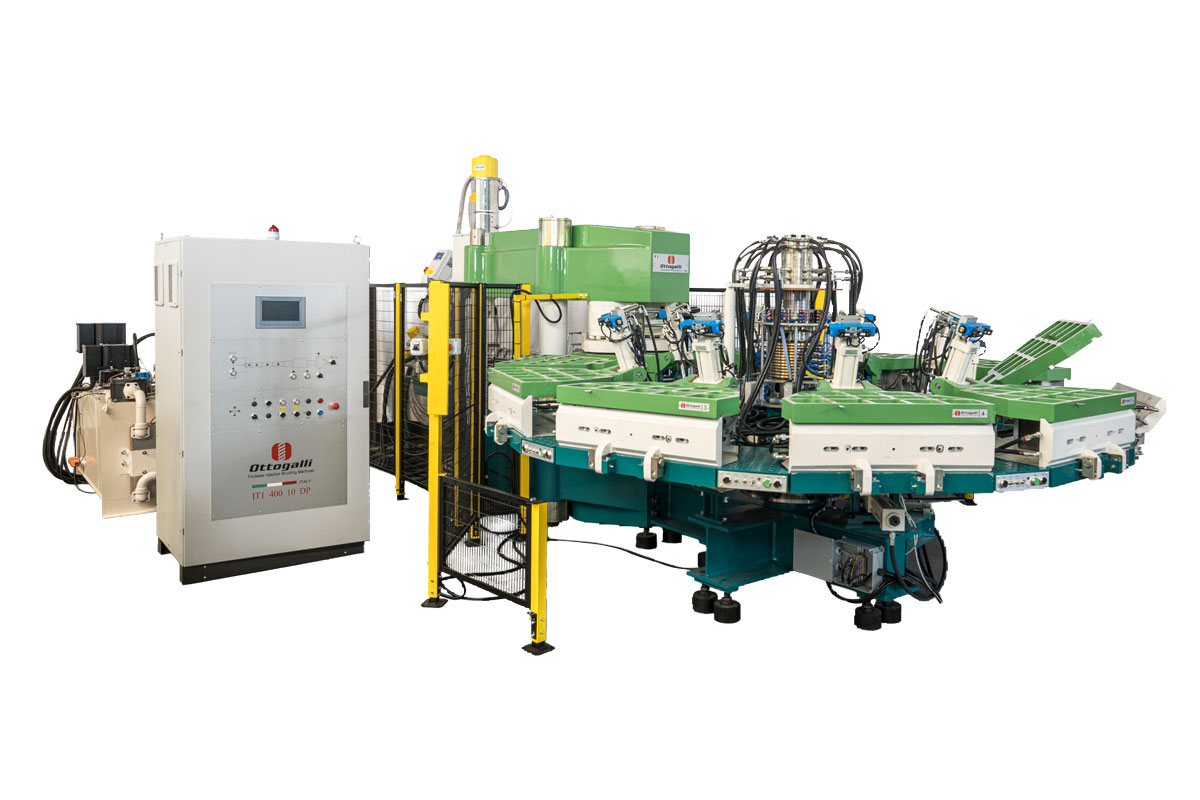

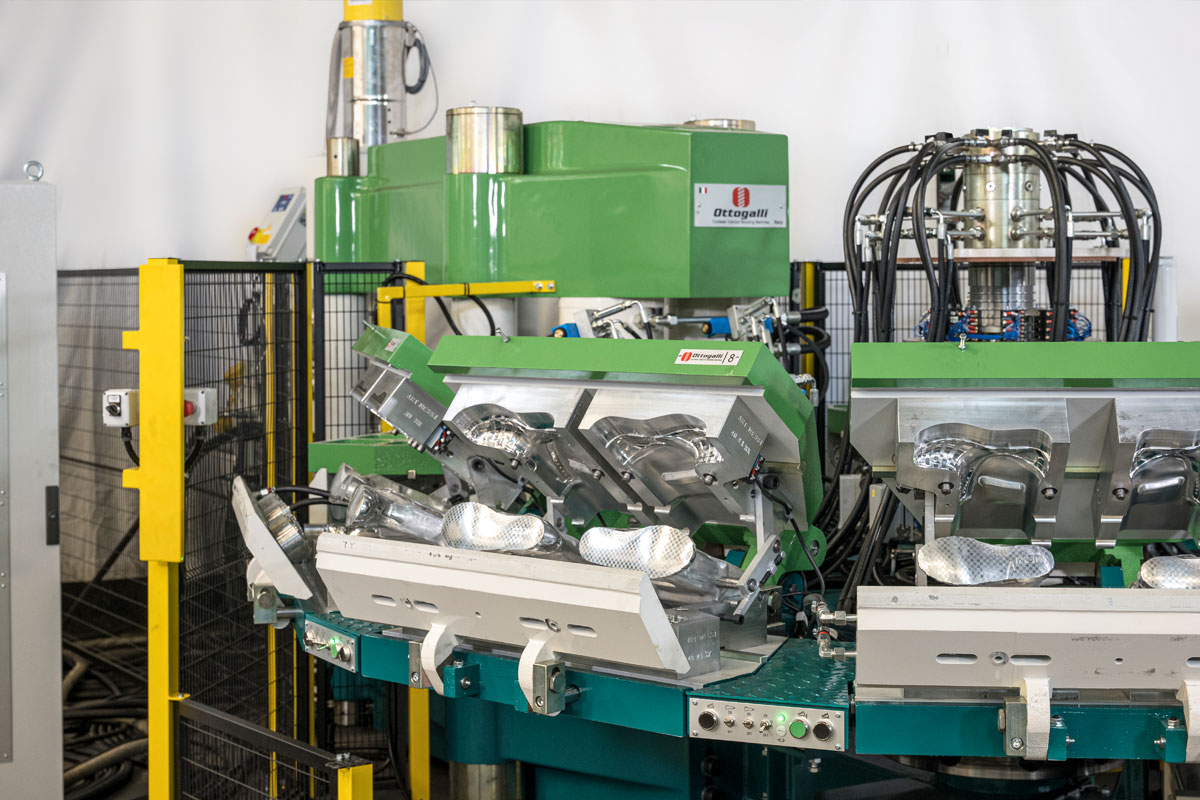

Automatic 10- to 12-station machine for the production of sandals, shoes and ankle boots up to 23 cm high in 1-color thermoplastic material.
Used materials: pvc, tr and tpu.
Technical details
| Number of stations | n. 10/12 |
| Number of injectors | n. 1 |
| Diameter | ø 80 |
| L/D ratio | L/D 18 |
| Injection volume | cc 1500 |
| Theoretical max injection flow rate | cm3/sec 245 |
| Hydraulic Motor Displacement | cc 800 |
| Max screw rotation speed | rpm 150 |
| Max torque at 120 rpm | daNm 110 / 150 |
| Standard mold size | mm 750x415 |
| Max heating power | Kw 7 |
| Force Closing mold holder | Guaranteed by mechanical hydraulic system |
| Automatic mold holder opening | Standard |
| Blowing air into the molds | Standard |
| Mold cooling | Standard |
| Maximum height of the molds | mm 171o 188 |
| Press closing force | kN 1300 |
| Energy saving plumbing | Standard (Brushless Optional) |
| Maximum service pressure | kg/cm2 140 |
| Proportional flow valves | Standard |
| Proportional speed valves | Standard |

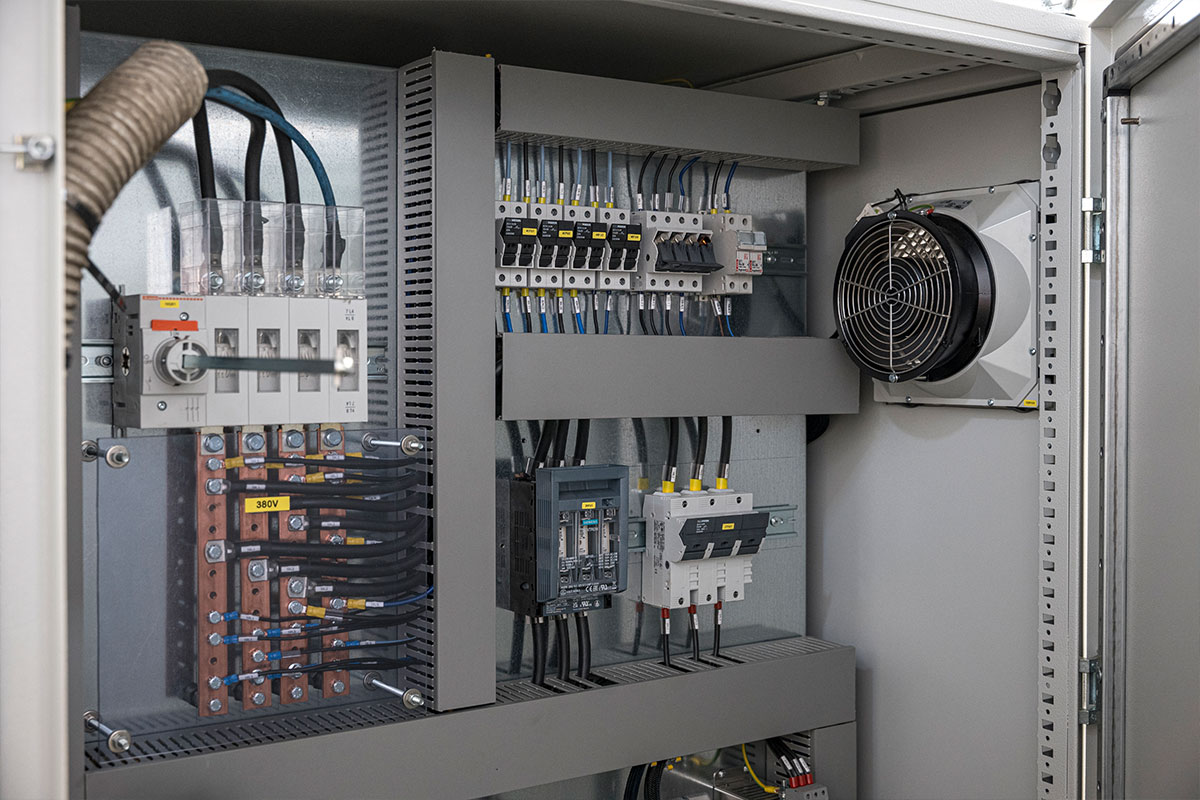

| Electric unit with Plc and Video Touch screen | Standard |
| Total Installed Power | kW 37 (Brushless kW 36) |
| Average steady-state consumption | kW 15 (Brushless kW 11) |
